This eaves felt support tray is used to prevent wind driven rain from causing damage at the eaves.

Made from PVC, it has a 150mm rear projection (up the roof) and a 50mm drip down into the gutter. Eaves guard is nailed to the top of the fascia board (timber or PVC fascia) at 300mm centres. Each length is 1.5m long and you should allow a 150mm overlap between lengths, with a nail fixed through the overlap.

Once installed, the bottom section of roofing membrane can be laid on top of the eaves guard.

What this Video installing Eaves with Birdcomb and Ventilation ....

What are the benefits of eave vents?

Benefits of eave vents

• Providing an inflow of cool, fresh air into the roof space.
• Improving cross flow ventilation.
• Removing excess heat and manages condensation.
• Improving energy efficiency.
• Providing hygienic ventilation.
• Cost-effective.

Eaves Ventilators

Roof voids must be ventilated in order to stop warm air condensing on cold surfaces. Condensation encourages rot and mould growth. The air gap dimensions shown on the drawings are the minimum widths required for clear continuous ventilation air paths at the eaves.

Eaves ventilators for roof voids are an essential form of ventilation to a roof space , with the added bird comb to prevent birds and vermin gaining access to the roof space. Also the Eaves Protector will extend water flow direct into the rainwater guttering.

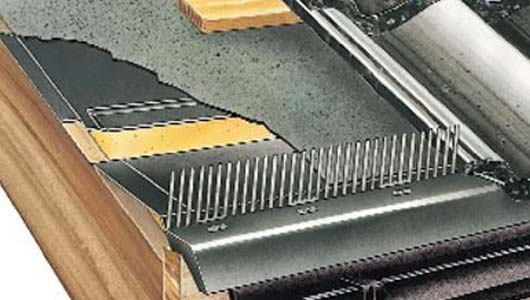

Eaves Protector with Bird Comb and Ventilation
